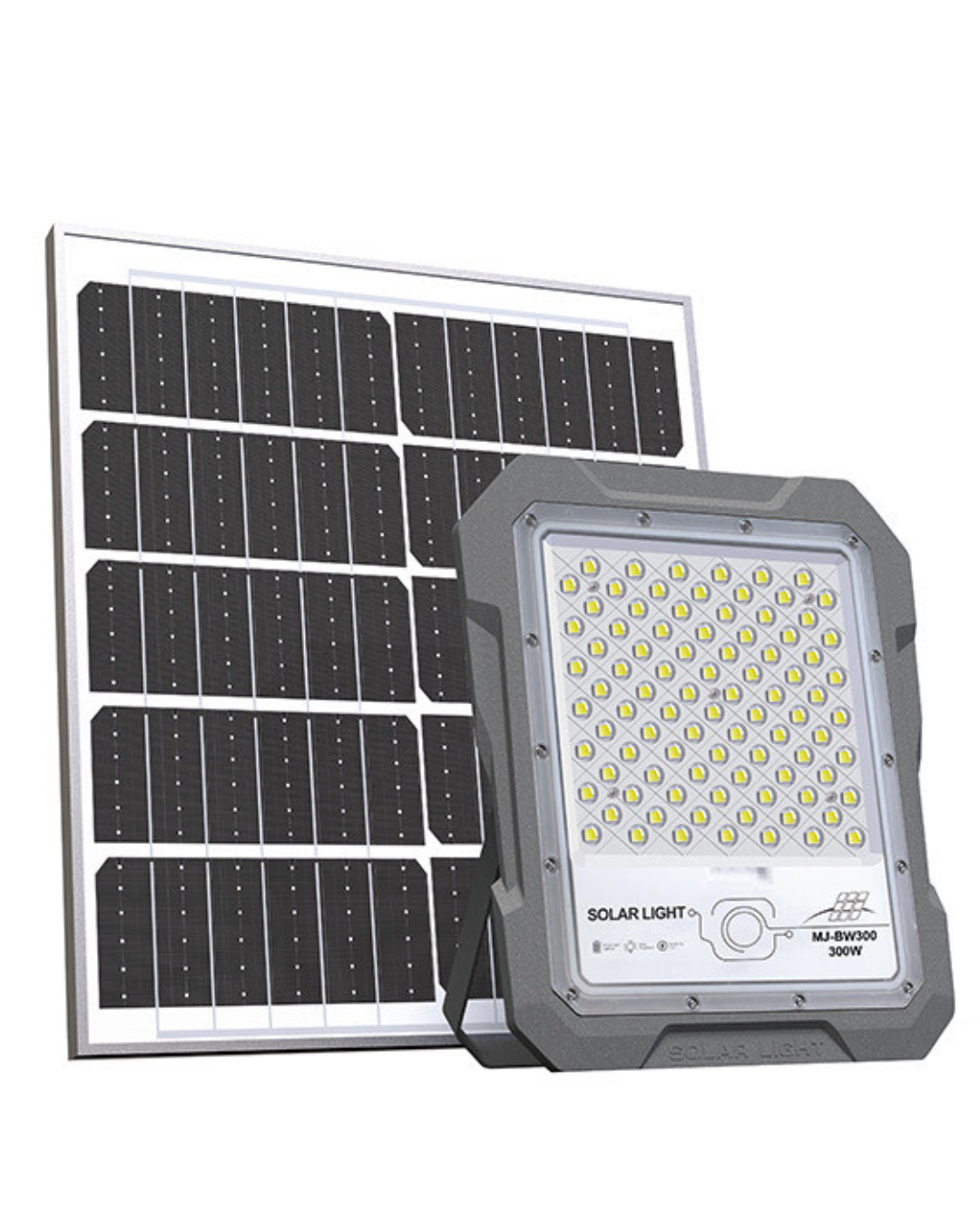

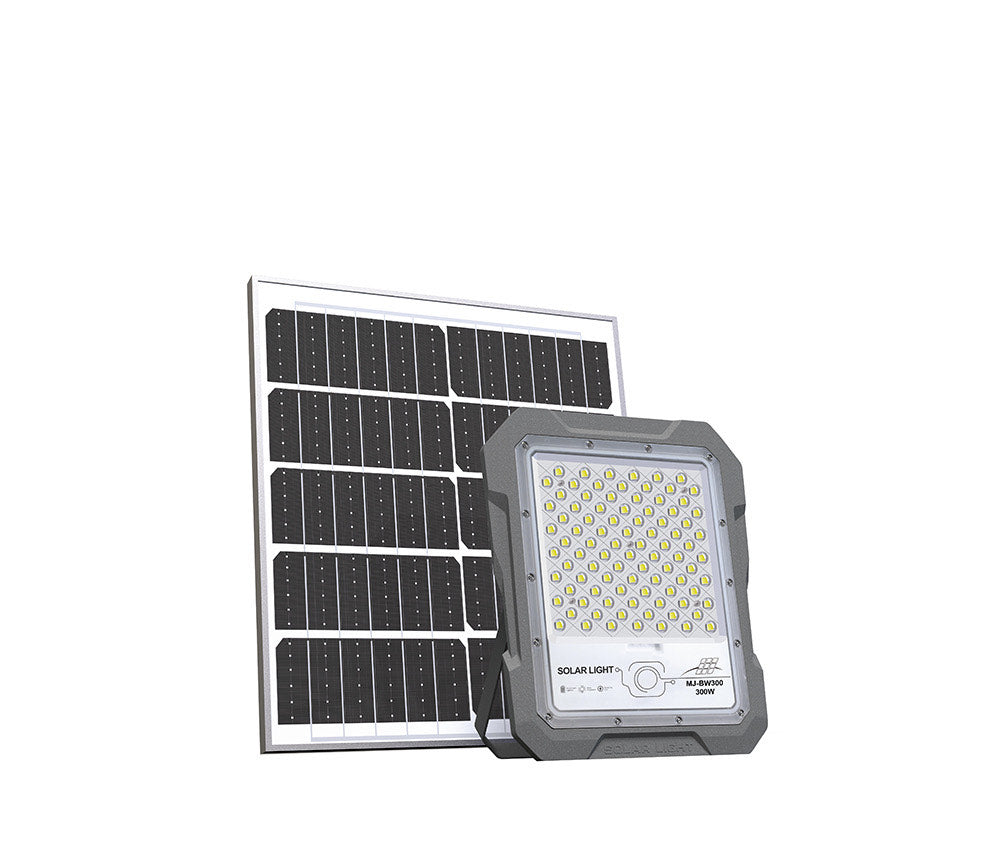

BigM 300W Durable Aluminum-Cast Solar Floodlight with Motion Sensor & Steady Lighting Options

The BigM 300W Solar Floodlight with Motion Sensor is a rugged, high-output solar floodlight designed for Canadian weather and demanding outdoor lighting applications. Use the motion-sensor mode for energy-saving security lighting at night, or switch to steady lighting to showcase billboards, shopfronts, parking lots, and advertising signage.

Why you’ll love it

• Dual lighting options:

• Motion Sensor Mode: The light stays off or in low-glow and jumps to full brightness when movement is detected—ideal for security and pathways.
• Steady (Constant-On) Mode: Continuous illumination for signage, façades, and work areas.

• Durable aluminum cast body: Resists impact, warping, and heat for long life—won’t crack like plastic housings.
• Weatherproof build: Sealed for outdoor use (dust and rain resistant) with corrosion-resistant hardware—reliable through Canadian winters and coastal moisture.
• High-efficiency solar charging: Oversized, high-efficiency monocrystalline solar panel and smart MPPT/PWM charging replenish the battery even on partly cloudy days.
• Smart power management: The controller automatically balances brightness and runtime to prevent over-discharge and extend battery lifespan.
• No wiring, no hydro bill: Install virtually anywhere—remote sites, farms, cottages, parking lots, trailheads, construction signage.

Product Specifications:

BigM 300W Solar Floodlight with motion sensor

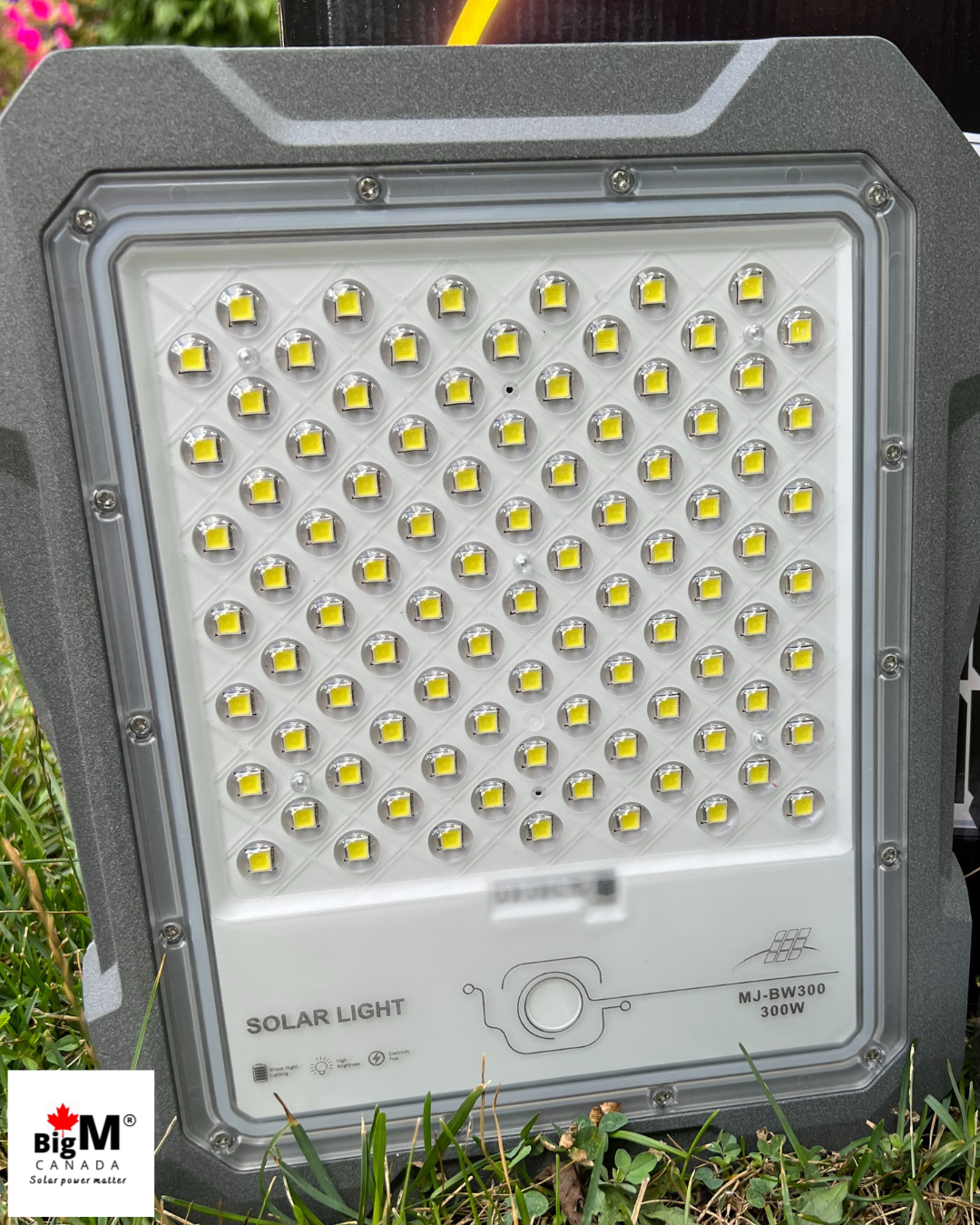

Lamp beads: 91 pcs larger size highly efficient 5054 LED beads

Color temperature: 6500 K Cool white or daylight

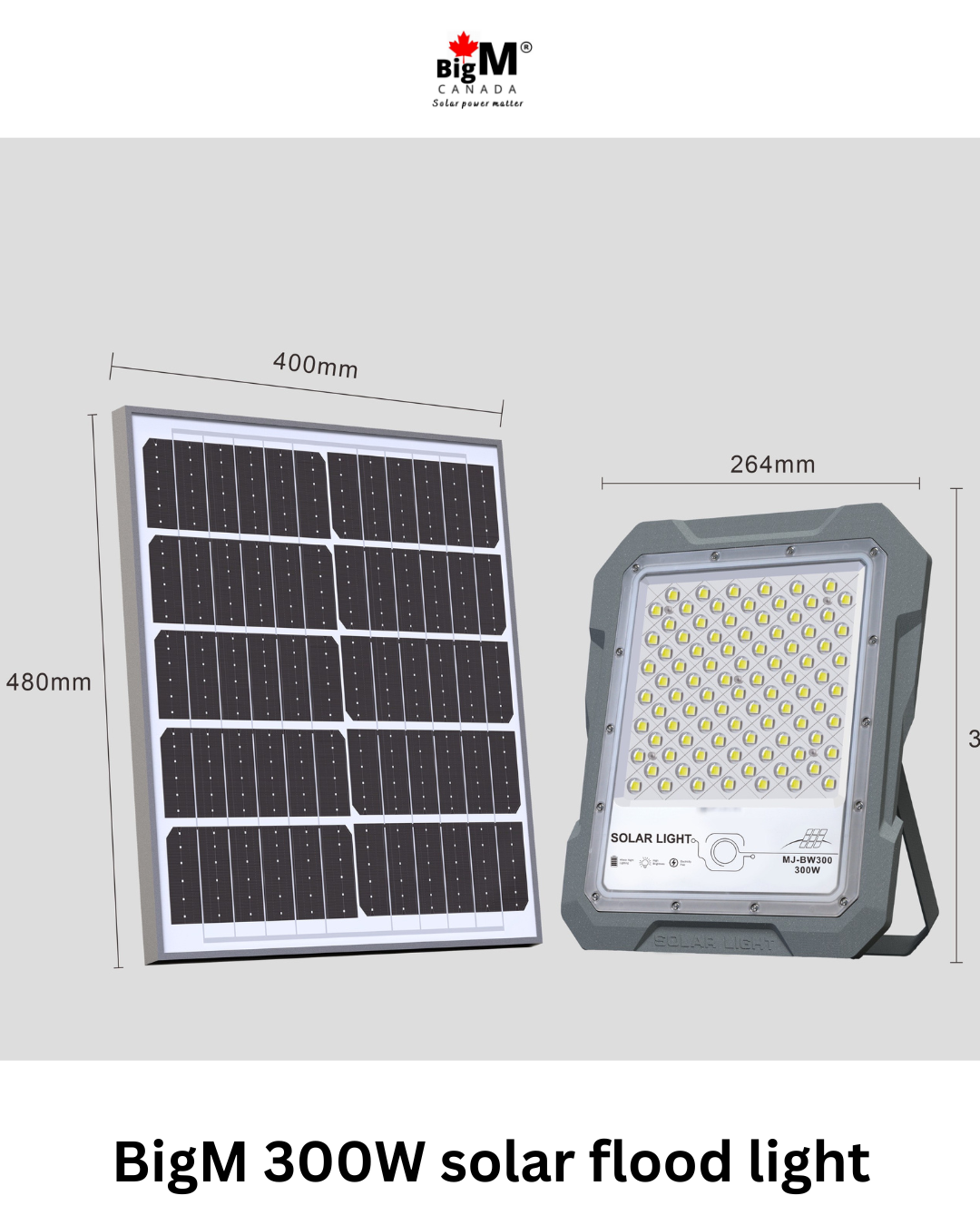

Lamp size: Length 311mm (12.25”) X Width 264mm (10.4”) X 55mm Height (2.2")

Photovoltaic Solar panel size: Length 480mm (19”) X Width 400mm (15.75”)

Solar panel: 5V 40W Monocrystalline

Extension cable: 10 ft long

Battery type: 3.2V 32650 30000mAH Lithium iron phosphate (LiFePO4) rechargeable battery

Battery Life Cycle: 2000 charging times

Charging time: 5-6 hours on a good sunny day

Working time: 8 hours after a daylong full charge

Lifespan (hours): 50000

Working Time (hours): 50000

IP Grade: IP65 grade Waterproof

Working Temperature: -50 degrees C to +50 degrees C

Material: Aluminum shell and acrylic glass materials

Lighting Irradiation areas: 30X30 ft

Installation height: 10-25 ft recommended

Warranty: 1-year limited warranty



Performance at a glance

• Output class: 300W generates about 15000 lumens of brightness with a wide 120° flood beam for large-area coverage.
• Colour temperature: Crisp daylight white (typically 6000–6500K) for visibility and contrast.
• Sensor range & angle: PIR motion detection up to ~8–10 m with a broad detection arc (site-dependent).
• Runtime: All-night operation in Motion mode; long, stable operation in Steady mode when the battery is fully charged. Actual runtime varies by season, panel placement, and brightness setting.
• Charging time: Full sun typically charges the battery during the day; partial sun may reduce evening runtime.



Note: Exact lumen output and battery capacity vary by configuration. BigM sizes the panel and battery to ensure dependable night-to-night performance in Canadian conditions.



Construction & components

• Die-cast aluminum housing with heat-dissipating fins to protect LEDs and maintain brightness.
• Tempered lens/cover for impact resistance and uniform light distribution.
• 30000mAh High-capacity lithium (LiFePO₄ or Li-ion) battery pack for long cycle life and cold-weather performance.
• Adjustable solar panel bracket for optimal tilt and sun exposure.
• Stainless mounting hardware to resist rust and corrosion.



Controls & modes

• One-touch mode switching: Motion, Dusk-to-Dawn Constant-On, or Timer (e.g., 3/5-hour)

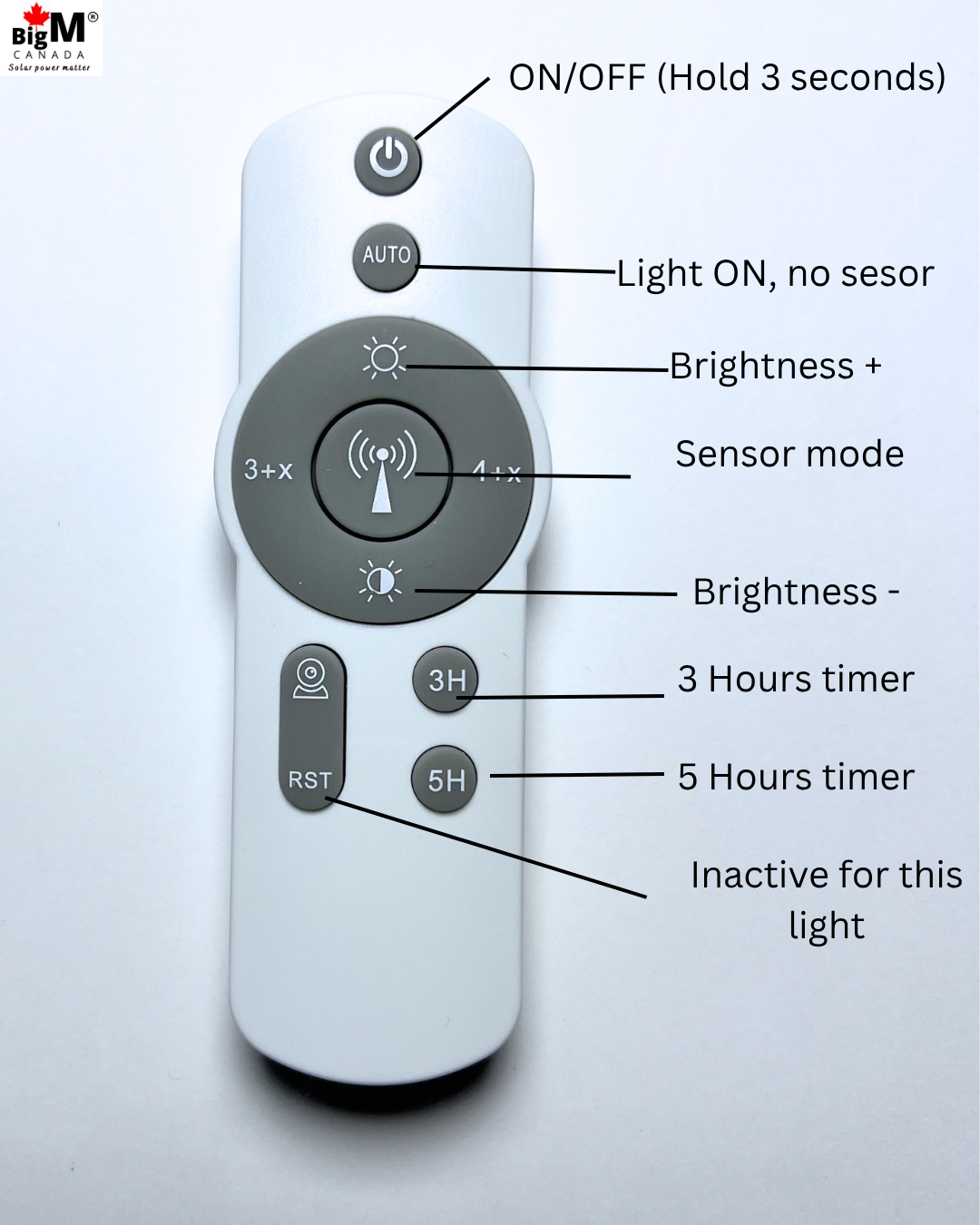

• Remote control (included) to set brightness levels, schedule, and sensor sensitivity from the ground.
• Memory function: Remembers the last used setting after sunrise/sunset cycles.



Ideal applications

• Billboard and advertising signage
• Storefronts, façades, and monument signs
• Driveways, pathways, and parking lots
• Barns, yards, farms, and job sites
• Community centres, schools, parks, and trails



Installation tips (no electrician required)

1. Mount the light 3–6 m high for wide coverage; aim to minimize glare on neighbours and roads.
2. Place the solar panel facing true south with an appropriate tilt (rough guide: your local latitude) and zero shade between 10 am–3 pm.
3. Secure all cables using the included clips; leave a small drip loop to keep water out of fittings.
4. Charge fully in the sun for 1–2 days before first use for best battery calibration.
5. Fine-tune brightness or mode with the remote for your season and use case.

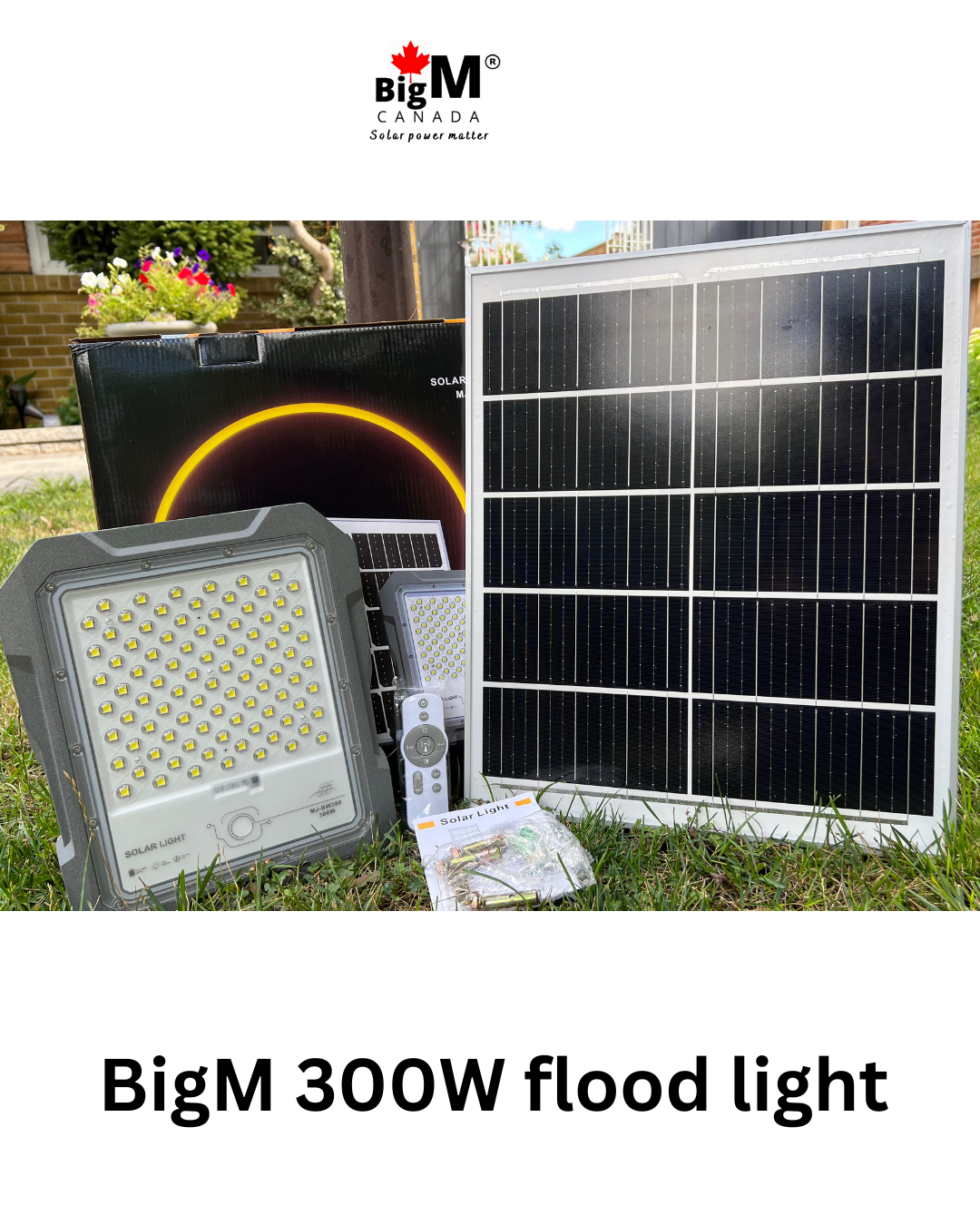

What’s in the box

• 300W solar floodlight (aluminum die-cast)
• Matching a high-efficiency solar panel with an adjustable bracket
• Mounting hardware and anchors
• Remote control + batteries
• Quick-start guide



Care & seasonal notes

• Winter: Brush off snow on the panel after storms; expect shorter runtimes in mid-winter due to shorter days.
• Summer: If you need longer nights of steady lighting, lower the brightness for extended runtime.
• Annual check: Re-tighten brackets, clean panel glass, and inspect cable seals.



Frequently asked questions

Q: Will it stay on all night in steady mode?

A: In summer with good sun and moderate brightness, yes for most installations. In winter or at maximum brightness, use Motion or a timed steady mode to guarantee all-night coverage.

Q: How bright is “300W”?

A: “300W” describes the LED class; real-world brightness depends on LED efficiency and power draw in each mode. For signage, it provides strong, uniform illumination with a wide beam.

Q: Can I angle the light and the panel separately?

A: Yes—the head and panel mount independently so you can aim the light where you need it while optimizing the panel for sun.

Q: Is it waterproof?

A: Yes, the fixture and connections are sealed for outdoor use in rain and snow.
